Route Representation

Open/R provides flexible ways of expressing reachability information. It allows a network operator to express Preference, Performance, and Policy Metadata with every route announcement. This document describes the route representation in detail.

Design Rationale

Simplicity and flexibility are the two main criteria that we considered into the design of Open/R route. Traditional protocols like BGP, OSPF, and ISIS influenced the design. The key takeaways

  • Numeric metrics to indicate route preference

  • Customizable forwarding behaviors within Area

  • Meta-data for influencing route policing at Area Border

  • Expressing performance requirements

  • Path tracing

Definitions

transitive

Attributes that are preserved during route re-distribution at Area Border. Note that not all transitive attributes are mutable by the policy. non-transitive is the opposite of transitive.

mutable

The route attribute that can be altered by the policy during route re-distribution at Area Border. immutable is the opposite of mutable.

Attributes

> prefix

transitive, immutable Express Network Layer Reachability Information (NLRI) for IPv4 or IPv6. This is a key attribute of the advertised route.

> metrics

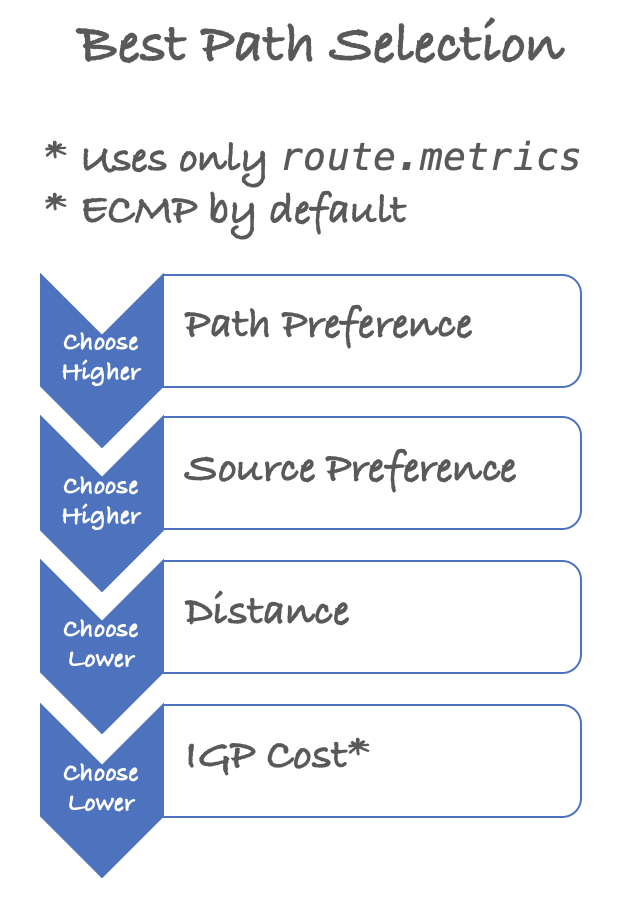

Expresses the relative preference of route among all received advertisements. The metrics can be tuned to prefer one network path over another or prefer certain applications over another in-case of anycast addresses. Open/R supports 3 dimensions of metrics to express a preference. The design allows us to add more metrics in the future based on the use-case. All metrics are numeric by definition, as it greatly simplifies the understanding and implementation.

Screen Shot 2020-05-29 at 10 18 29 AM

metrics.path_preference numeric, transitive, mutable, prefer-higher, 1st criterion Network path preference for this route. This is set at the origination point. It is either retained (transitive) or updated as the route traverses the network. e.g. LIVE-PATH=1000, DRAINED-PATH=500

metrics.source_preference numeric, transitive, immutable, prefer-higher, 2nd criterion User or Application preference of the route. Set at the origination point and is never modified as route propagates in the network. e.g. HIGH-PRI=200, LOW-PRI=100

metrics.distance numeric, transitive, mutable, prefer-lower, 3rd criterion Cost to reach the originating node from the current area border. By default incremented by igp_cost of the route within the area during route re-distribution across area. Should never decrease if manipulated via policy to ensure loop-free routing. This resembles AS-Path length of BGP

Take a look at Decision Route Computation for understanding best route selection process

> tags

set[string], transitive, mutable Meta-data associated with the route to facilitate route policing as the route propagates through the network. Encoded as set<string> and hence there is no ordering and duplicates. This can be used to express various things like origination node name, propagation scopes, route type, etc. This analogous to BGP Communities, except this, is much more flexible as there is no byte limit.

> area_stack

list[string], transitive, immutable An ordered list of areas the route has traversed so far. The entry at the front indicates the originating area, while entry at the back indicates the peer area re-distributing the route. This helps in preventing route looping and debugging.

You can draw similar to BGP AS-Path. However, note that it is not used in best route selection and can’t be modified by the policy.

> forwarding-algorithm

non-transitive, mutable Link-state algorithm for route computaion. Open/R supports two forwarding algorithm, SP_ECMP (Shortest Path ECMP) and KSP2_ED_ECMP (K-Shortest Path). The algorithm with the lowest value is chosen in-case of conflicting advertisements.

> forwarding-type

non-transitive, mutable Data plane forwarding mechanism to use. Open/R supports two forwarding types, IP (Usual IP routing) and SR_MPLS (Source Routing with MPLS data plane). The type with the lowest value is chosen in-case of conflicting advertisements.

NOTE: KSP2_ED_ECMP is only compatible with SR_MPLS forwarding type.

> min-nexthops

optional[numeric], non-transitive, mutable Expresses the minimum number of next-hops on a computed route. The route is programmed and hence re-distributed if min-next-hop criteria is met. Kind of a performance requirement. This feature helps to avoid funneling in the CLOS-Fabric networks when the capacity of one of the planes is reduced greatly compared to others because of maintenance or device failure.

Thrift Struct

Refer to struct PrefixEntry in openr/if/Types.thrift
